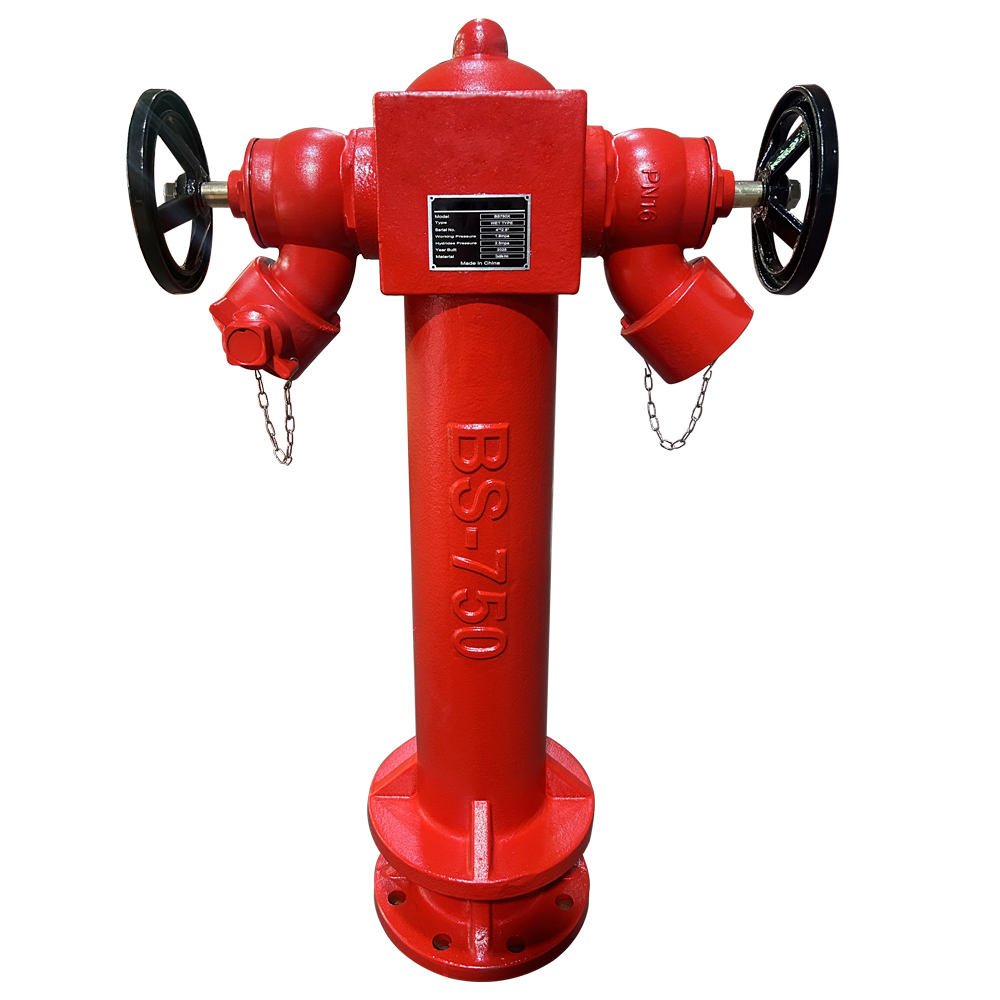

2 Way Wet Barrel Fire Hydrant – BS750 Pillar Type
- Body: Cast iron
- Valves: Brass / LG2 (Gunmetal)
- Adaptor & Outlets: Copper alloy, 2 × 2.5″ BS Instantaneous female outlets with control valves
- Inlet: 4″ Table T BS 10 flange
- Coating: Red epoxy-coated finish
- Complies with BS750 standard for wet barrel fire hydrants
- Two-way design with 2 × 2.5″ control valves for efficient water discharge
- Durable cast iron body with corrosion-resistant brass valves
- 4″ Table T BS 10 flange inlet for easy system integration
- Red epoxy coating for excellent weather and UV resistance
- Easy maintenance with accessible top bonnet and outlet structure
- Ideal for use in regions with non-freezing climates
| Specification | Details |
|---|---|
| Design Standard | FM 1511 / UL 246 |
| Hose Outlet Options | One or Two – 2 ½” |
| Pumper Outlet Options | One or None – 4” or 4 ½” |
| Upper Flange Size | 4” ANSI Class 125 |
| Maximum Working Pressure | 250 PSI |
| Type | Wet Barrel |
| Material Composition | Bronze, Ductile Iron, EPDM, Stainless Steel |
| Operation Mechanism | Turn Clockwise to Open |
| Protective Coating | Fusion-Bonded Epoxy |
| Drainage System | Sealed Design to Prevent Water Leakage |
What Is a Wet Fire Hydrant?
A wet fire hydrant, also known as a wet barrel fire hydrant, is a type of above-ground fire hydrant designed to maintain water within the barrel at all times. Unlike dry hydrants, which are drained between uses, the wet type ensures immediate water flow when opened.
This type is widely used in warm climates where freezing is not a concern. The design provides quick access for firefighters to connect hoses and control water discharge efficiently.
Structure and Components of the Wet Fire Hydrant
A typical wet fire hydrant consists of a cast iron body, bronze or brass internal parts, and corrosion-resistant coating. The main components include:
Body and Bonnet – Designed for high pressure resistance and durability.
Outlet Valves – Usually 2-way or 3-way, allowing multiple hose connections.
Stem and Valve Seat – Provide tight sealing to prevent leakage.
Operating Cap – Ensures easy operation during emergency access.
Each hydrant is factory-tested to guarantee long-term performance under demanding service conditions.
Why Choose Xhy Group Wet Fire Hydrant
Xhy Group is a professional wet fire hydrant manufacturer in China, offering a full range of BS750 and AWWA standard hydrants.
Our hydrants are designed for durability, safety, and ease of installation. Each unit undergoes strict pressure testing and quality control before shipment.
We also provide OEM customization, surface coating options, and comprehensive technical support to meet various engineering requirements.
Explore More Fire Protection Valves
As a trusted fire hydrant and valve supplier, Xhy Group offers:
Wet and dry barrel fire hydrants
Fire hydrant valves and fittings
Gate valves, check valves, and butterfly valves
