what is an air release valve?
Table of Contents
01 What is an air release valve?
An air release valve (ARV), also known as an air relief valve, plays a critical role in ensuring the smooth operation and efficiency of various pipeline systems. Installed strategically at high points in pipelines, ARVs automatically vent trapped air pockets that can accumulate during operation. This air removal is essential for maintaining optimal system performance and preventing potential damage.
02 Types of air release valve
Air release valves play a crucial role in maintaining the efficiency and safety of pipeline systems by preventing air accumulation and potential water hammer. Among the various air release valve types, three main categories are particularly important:

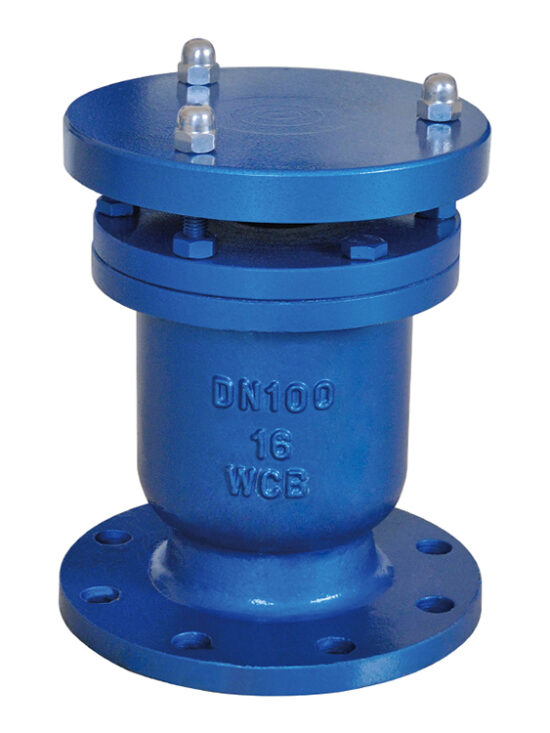

Single Orifice Air Release Valve: This type of air release valve features a single orifice designed to release trapped air from the pipeline. It is commonly used in low-pressure systems, such as water distribution networks, where air pockets could hinder water flow. These valves are essential components in irrigation air release valve applications, ensuring that air is efficiently expelled to maintain consistent water delivery.

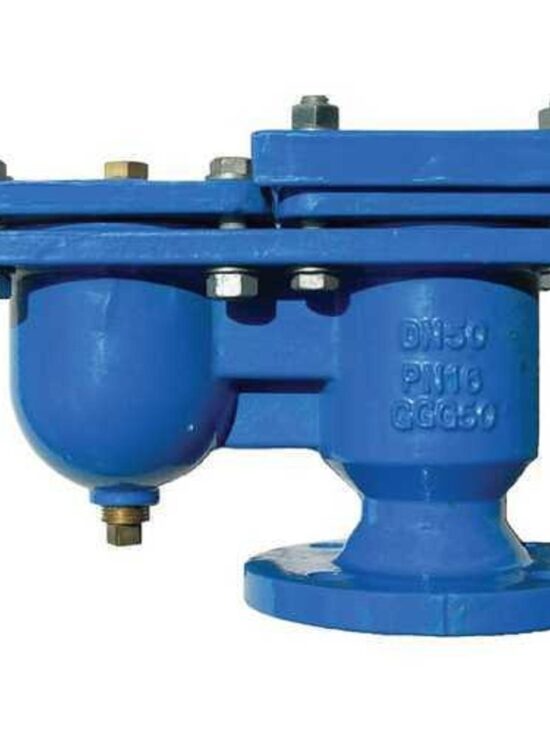

Double Orifice Air Release Valve: Featuring two orifices, this valve is more suited for high-pressure systems, such as sewage lines. The double orifice design allows for the effective release of both small and large volumes of air, ensuring the system operates smoothly without the risk of air entrapment. These valves are also widely utilized as air release valve for water line systems where maintaining pressure stability is crucial.

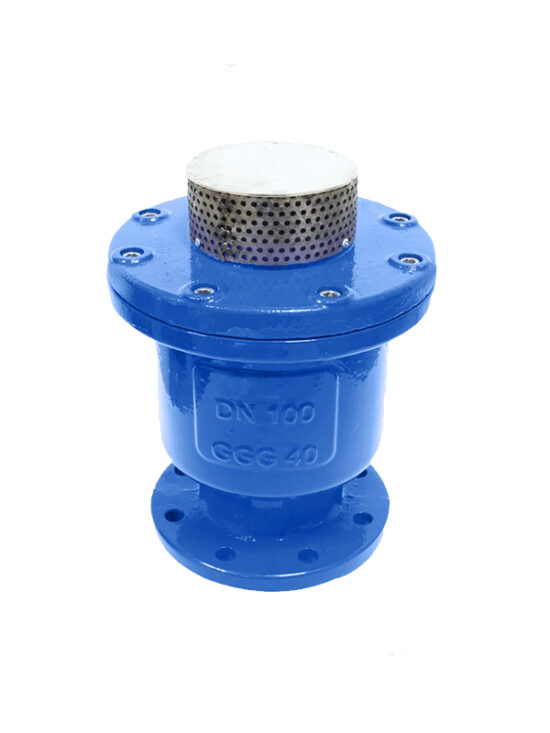

Dynamic Anti-Shock Air Release Valve: This advanced type of air release valve not only prevents air accumulation but also mitigates water hammer effects—sudden pressure surges that can cause significant damage to pipelines. Typically used in high-pressure environments like sewage systems, the dynamic anti-shock valve is critical in protecting the integrity of the system while ensuring air is properly managed.
In summary, understanding these air release valve types is vital for selecting the right valve for specific applications, whether it’s an irrigation air release valve or an air release valve for water line systems. Each type is tailored to handle different pressure conditions and pipeline requirements, ensuring efficient and safe operation.
03 Basics of an air release valve
In irrigation systems, water flows through pipelines from the source to the designated area. During this process, air pockets can become trapped within the pipelines due to uneven water flow or filling procedures. These trapped air pockets can significantly hinder water flow and reduce the overall lifespan of the irrigation system.
This is where irrigation air release valves (ARVs) play a crucial role. An air release valve effectively eliminates trapped air, allowing water to flow smoothly through the pipelines, ensuring optimal irrigation system performance. As internal pressure builds up within the water pipe, the air release valve for water line automatically opens, releasing the trapped air and ensuring efficient water flow. By incorporating these valves, the system can maintain consistent pressure and function, thereby enhancing the longevity and efficiency of the irrigation network.
04 Working principle of an air release valve
Air release valves play a crucial role in piping systems by automatically releasing accumulated air, preventing various issues such as decreased water flow, increased energy consumption, and system damage.
1. Air Accumulation in Piping Systems:
Air can enter piping systems during installation, filling, or operation through various means, such as leaks, open valves, and changes in flow velocity. Air pockets can accumulate at high points, bends, and dead ends in the system, leading to several problems:
- Reduced flow efficiency: Air pockets obstruct the flow of water, reducing the system’s capacity and increasing energy consumption.
- Increased pressure: Trapped air can cause pressure surges, leading to water hammer, pipe bursts, and damage to pumps and valves.
- Corrosion and cavitation: Air pockets can accelerate corrosion and cavitation in pipes, reducing their lifespan and increasing maintenance costs.
2. Automatic Air Release Mechanism:
Air release valves are designed to automatically release accumulated air and maintain an air-free system. The valve’s operation relies on the following key components:
- Float: A buoyant element, usually made of stainless steel or plastic, that rises with the accumulation of air in the valve chamber.
- Orifice: A small opening in the valve body that allows air to escape when the float reaches a certain level.
- Sealing mechanism: A system of seals and gaskets that ensures a tight closure of the orifice, preventing water leakage.
3. Air Release Process:
As air accumulates in the valve chamber, the float rises, triggering the opening of the orifice. Air is then released through the orifice until the float reaches a lower level, indicating the removal of air. The sealing mechanism ensures that the orifice closes tightly once the air is released, preventing water from leaking out.
05 Components of an air release valve
1. Screen Cover
- The screen cover serves as the first line of defense, protecting the valve’s internal components from debris and foreign particles.
- It is made of durable materials like stainless steel or brass, ensuring longevity and resistance to corrosion.
- The screen cover’s mesh size is carefully designed to prevent the entry of harmful particles while allowing the passage of air.
2. Sealing
- A critical component that ensures a tight seal, preventing air leakage and maintaining system pressure.
- It is typically made of rubber or elastomeric materials, providing flexibility and resilience against wear and tear.
- The sealing element is designed to withstand the system’s operating pressure and temperature, ensuring reliable performance over time.
3. Retainer
- The retainer plays a vital role in securing the float ball in place, preventing it from dislodging due to vibration or flow disturbances.
- It is usually made of stainless steel or other corrosion-resistant materials for durability.
- The retainer’s design allows for easy disassembly and maintenance, ensuring the valve’s longevity.
4. Float Ball
- The float ball is a key component that senses the presence of air and triggers the valve’s opening and closing mechanism.
- It is typically made of lightweight materials like polypropylene or hollow plastic, allowing it to rise and fall freely with changes in air volume.
- The float ball’s size and buoyancy are carefully engineered to ensure accurate and responsive operation of the valve.
5. Guide Pin
- The guide pin provides smooth and stable movement for the float ball, preventing it from getting stuck or malfunctioning.
- It is usually made of stainless steel or other corrosion-resistant materials for durability.
- The guide pin’s design minimizes friction and ensures precise operation of the valve’s mechanism.
6. Body
- The body houses all the internal components of the air release valve, providing structural support and protection.
- It is typically made of cast iron or ductile iron, offering high strength and resistance to corrosion.
- The body’s design ensures efficient airflow and minimizes pressure loss, optimizing the valve’s performance.
7. Flange Rubber Gasket
- The flange rubber gasket creates a tight seal between the valve and the piping system, preventing leaks and ensuring system integrity.
- It is usually made of elastomeric materials like rubber or EPDM, providing flexibility and resistance to chemicals and weathering.
- The flange rubber gasket’s design allows for easy installation and maintenance, reducing downtime and costs.
8. Seat
- The seat provides a surface for the float ball to seal against, preventing air from leaking back into the system.
- It is typically made of rubber or elastomeric materials, ensuring a tight seal and preventing backflow.
- The seat’s design allows for quick and precise opening and closing, optimizing the valve’s response to changes in air pressure.
9. Flap
- The flap is a flexible component that covers the seat, preventing air from leaking back into the system.
- It is typically made of rubber or elastomeric materials, ensuring a tight seal and preventing backflow.
- The flap’s design allows for quick and precise opening and closing, optimizing the valve’s response to changes in air pressure.
1.Screen cover
2.Sealing
3.Retainer
4.Float ball
5.Guide pin
6.Body
7.Flange rubber gasket
8.Seat
9.Flap
Body
06 Function of an air release valve
An air release valve is designed to remove trapped air from pipelines, ensuring the efficient flow of liquids within the system. Air pockets can form during filling or due to changes in flow, and if not properly released, they can cause blockages, reduce system efficiency, and lead to pressure fluctuations that may damage the pipeline.
By automatically releasing this trapped air, air release valves help maintain consistent pressure and smooth operation in a variety of applications, including water distribution and irrigation systems. Their role is crucial for preventing issues related to air accumulation, ensuring that the pipeline operates at its optimal performance and extends its lifespan.
07 Usage of air release valves
Air Release Valves in Water Applications
Air release valves (ARVs) play a critical role in water systems, ensuring efficient operation, preventing air-related problems, and protecting system integrity. Their ability to automatically release trapped air makes them crucial for various water applications, including:
Water Distribution Systems:
- ARVs are essential in water distribution networks, ensuring a steady flow of water to residential, commercial, and industrial areas. They prevent air pockets from forming, which can lead to reduced flow rates, increased pressure fluctuations, and water hammer.
Benefits of Using ARVs in Water Distribution Systems:
- Improved flow rates and pressure: By eliminating air pockets, ARVs help to maintain optimal flow rates and pressure throughout the distribution system. This ensures that water is delivered efficiently to end-users.
- Reduced water hammer: ARVs prevent the formation of air pockets that can cause water hammer, a destructive pressure surge that can damage pipelines and equipment. This helps to protect the system and extend its lifespan.
- Increased energy efficiency: Air pockets can increase energy consumption by causing pumps to work harder. ARVs reduce energy consumption by promoting smooth water flow.
- Enhanced system longevity: By preventing air-related problems such as corrosion and water hammer, ARVs contribute to the extended lifespan of pipelines and associated equipment.
Types of ARVs Used in Water Distribution Systems:
- Simple air release valves: These valves are designed to release air automatically at high points in the pipeline.
- Combination air and vacuum valves: These valves release air during filling and prevent vacuum formation during draining.
- Air release valves with vacuum breakers: These valves release air during filling and prevent vacuum formation during draining. They also have a built-in vacuum breaker to prevent backflow of contaminated water.
Selection and Installation of ARVs in Water Distribution Systems:
- The type and size of ARV should be selected based on the specific application and system requirements.
- ARVs should be installed at high points in the pipeline where air is likely to accumulate.
- It is important to follow the manufacturer’s instructions for installation and maintenance of ARVs.
08 Advantages and Disadvantages of air release valves
Advantages of Air Release Valves
Air release valves offer a range of benefits for various pipeline systems, including:
- Efficient Air Removal: ARVs effectively eliminate trapped air pockets, ensuring optimal flow rates and system performance.
- Prevention of Water Hammer: By releasing air pockets, ARVs mitigate the risk of water hammer, a destructive pressure surge that can damage pipelines and equipment.
- Reduced Corrosion: Air pockets can promote corrosion within pipelines. ARVs minimize this risk by removing air and maintaining a consistent water flow.
- Energy Efficiency: Air pockets can increase energy consumption by causing pumps to work harder. ARVs reduce energy consumption by promoting smooth water flow.
- Enhanced System Longevity: By preventing air-related problems such as corrosion and water hammer, ARVs contribute to the extended lifespan of pipelines and associated equipment.
- Automatic Operation: ARVs operate automatically, requiring minimal maintenance or intervention.
- Versatile Applications: ARVs are suitable for a wide range of applications, including water pipelines, sewer force mains, and other industrial and agricultural systems.
Disadvantages of Air Release Valves
While air release valves offer numerous advantages, there are a few potential drawbacks to consider:
- Air Release Capacity Limitations: ARVs may not be able to handle the air flow demands during rapid filling or emptying of pipelines.
- Valve Sizing: Improperly sized ARVs may not effectively remove air, leading to system inefficiencies.
- Installation and Maintenance: ARVs require proper installation and periodic maintenance to ensure optimal performance.
- Cost: The cost of ARVs can vary depending on the size, material, and features of the valve.
