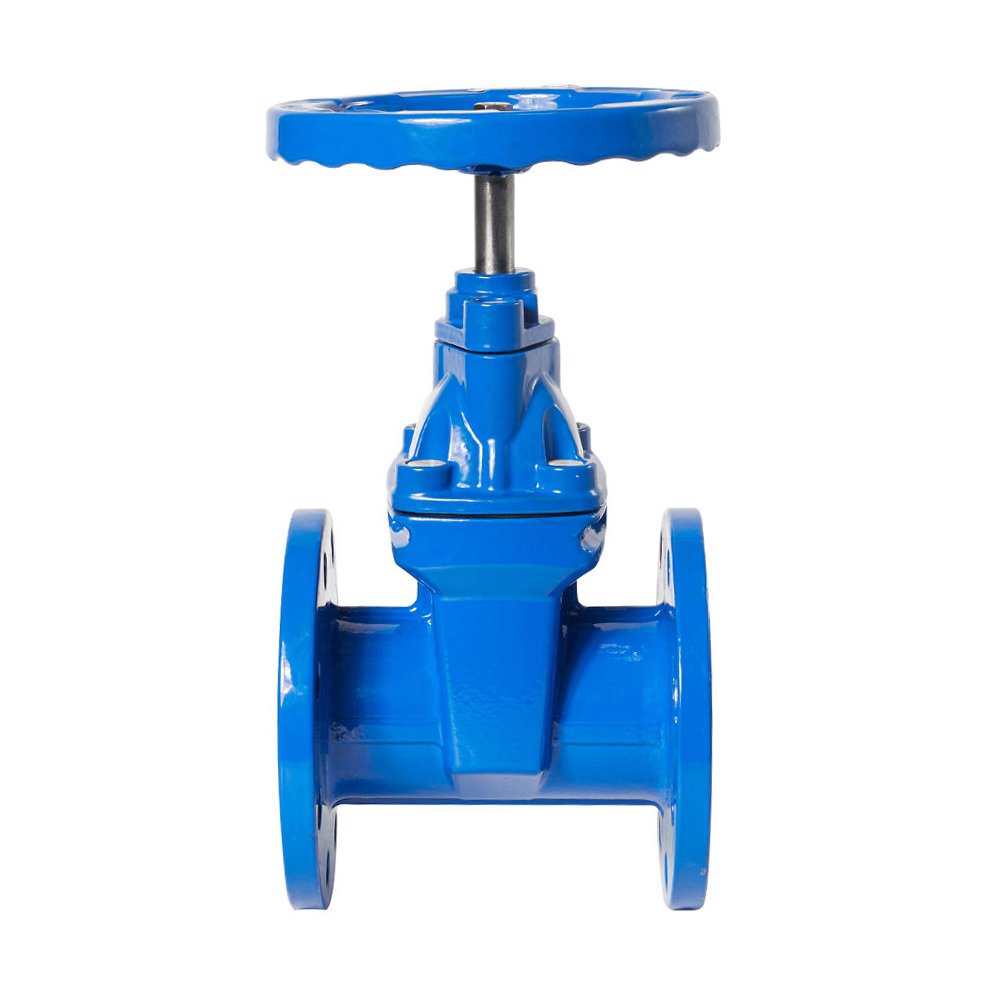

DN100 PN16 GGG50 Gate Valve
- Body: GGG50
- Bonnet: GGG50
- Wedge: GGG50 EPDM Vulcanized
- Bonnet Bolts: Steel 8.8 + Wax
- Stem: 2Cr13, SS316, SS316L
- Stem Nut: Brass
- Split Collar: Iron+Electroplate
- Gasket: Naylon
- Gland: Brass
- “0” Ring: NBR
- Bonnet Gasket: NBR
- Material: It is made from cast iron, which provides durability and strength.
- Non-Rising Stem: The valve has a non-rising stem design, which means the stem remains in a fixed position as the valve opens and closes. This makes it suitable for applications with limited vertical space.
- Gate Design: The valve has a gate mechanism that moves up and down to control the flow of the fluid. It provides a tight seal when closed, minimizing leakage.
- Size: The valve has a 4-inch diameter, making it suitable for applications requiring a high flow rate.
- Pressure Rating: It is designed to handle specific pressure levels, ensuring reliable performance under different operating conditions.
- Flanged Ends: The valve is equipped with flanged ends, which allow for easy installation and connection to the pipeline system.
- Corrosion Resistance: The cast iron material used in the valve construction offers resistance to corrosion, extending its lifespan even in harsh environments.
- Wing-Nut Style Handwheel: The valve is operated using a wing-nut style handwheel, providing ease of operation and control.
- Versatility: The gate valve can be used in various industries and applications, including water treatment plants, sewage systems, irrigation systems, and industrial processes.
- Compliance: The valve may comply with industry standards and certifications to ensure its quality, performance, and safety.
| Attribute | Details |
|---|---|
| Size Range | DN 50 to 600 |
| Pressure Rating | 150 psi |
| Working Temperature | -10˚C ~ +80˚C14˚F ~ +176˚F (EPDM Seat) |
| End Connection | ANSI B16.1 / ANSI B16.5 |
| Face-to-Face | Manufacturer Standard |
| Test & Inspection | Manufacturer Standard |
| Stem Materials | 304 Stainless Steel |
| Body | Ductile Iron |
| Wedge | Ductile Iron + EPDM |
| Seat | EPDM |
DN100 PN16 GGG50 China Gate Valve
The DN100 PN16 GGG50 china gate valve is built with high-strength ductile iron for reliable shutoff in water supply, oil, and industrial pipelines. Compared with traditional cast iron models, this gate valve offers superior durability, corrosion resistance, and long service life.
High-Performance Gate Valves
Our GGG50 gate valves are manufactured to PN16 standards and offered in common sizes such as 3″ gate valve, 4 inch gate valve, and 2″ gate valve. With a resilient wedge gate valve design, they minimize leakage and ensure efficient fluid control. Options also include os&y gate valve and models meeting API 600 gate valve standards.
China Gate Valve Manufacturer Advantage
As a leading china gate valve supplier, JHY Group delivers precision machining and strict quality control. Whether compared with velan gate valves or nibco gate valve products, our valves provide cost-effective performance. For engineers choosing between a ball valve vs gate valve, the full-bore design of a china gate valve makes it ideal for versatile installations, including horizontal gate valve installed in a vault.
Maintenance and Support
The china gate valve is easy to service, with available gate valve repair parts, gate valve replacement handle, and full gate valve repair kit solutions. Technical documentation such as a gate valve diagram and gate valve symbol is provided on request. Xhy Group ensures dependable supply of knife gate valves, slide gate valves, and durable GGG50 gate valves, making us a trusted partner worldwide.
